Beyond Forced Air: Advanced Thermal Management and System-Level Cooling Architectures for Dry-Type Transformers
While the fundamental role of cooling fans in dry-type transformers is to enhance load-carrying capacity, modern power distribution demands a more sophisticated approach to thermal management. As transformers become more compact and are deployed in increasingly challenging environments—such as offshore wind turbines and high-density data centers—the focus has shifted from merely blowing air to engineering comprehensive, system-level cooling architectures. This article explores the advanced aerodynamic strategies, hybrid cooling systems, and environmental adaptations that define the next generation of dry-type transformer thermal management.

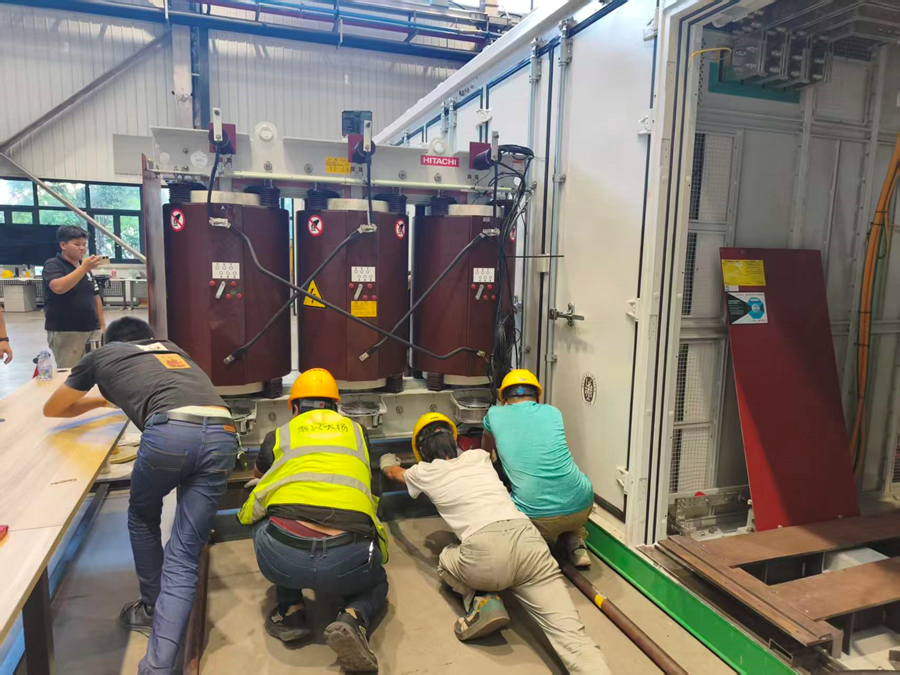

Aerodynamic Synergy: The "Chimney Effect" and Hybrid Airflow
Traditional cooling relies heavily on fans forcing air into the bottom of the transformer coils. However, advanced thermal design now focuses on optimizing the entire airflow path to create a synergistic cooling effect.
- The Chimney Effect:
Innovative cooling architectures employ a combination of bottom-mounted blowing fans and top-mounted exhaust (axial) fans. This configuration creates a powerful "chimney effect," actively drawing hot air out of the core and winding structures. By accelerating the exhaust velocity, this hybrid approach significantly enhances heat dissipation and prevents the recirculation of hot air, thereby increasing the transformer's overload capability by up to 10% compared to forced-air-only systems.
- Multi-Zone Air Ducting:
To address the challenge of uneven temperature distribution, modern fan housings are engineered with adjustable internal baffles and dual-channel outlets. By splitting the airflow into distinct inner and outer ducts, these designs ensure that both the inner and outer layers of the transformer coils receive uniform cooling. Furthermore, optimizing the outlet angle (e.g., directing airflow at a 50° to 70° upward inclination) aligns perfectly with the natural convection currents, maximizing thermal extraction.
Specialized Cooling Technologies for Extreme Environments
Standard forced-air cooling is not always sufficient for specialized industrial applications, necessitating the integration of active refrigeration and advanced materials.
- Active Refrigeration Integration:
In environments with high ambient temperatures, severe humidity, or where condensation is a risk, standard fans may fail to prevent overheating or frost formation. Advanced multifunctional cooling units integrate compressor-driven refrigeration cycles with finned condensers and evaporators. These systems not only provide active, chilled air to the transformer but also actively dehumidify and remove frost, ensuring reliable operation in harsh climates.
- Offshore and Marine Adaptations:
The push for compact, lightweight transformers in offshore wind power requires highly specialized cooling. To combat salt spray and extreme humidity, these fans utilize advanced surface treatments, such as electrophoretic coating on aluminum impellers and marine-grade stainless steel housings. The design focus here is on maximizing heat transfer per unit of volume, ensuring that the transformer footprint remains minimal while maintaining strict thermal limits.
Intelligent Thermal Management and Predictive Reliability
The integration of cooling fans with smart grid technologies has transformed them from passive mechanical components into intelligent, data-generating nodes.
- Closed-Loop Thermal Control:
Modern cooling systems are seamlessly integrated with advanced temperature controllers. Instead of simple on/off switching, these systems utilize real-time winding temperature data to dynamically adjust fan speeds or activate redundant exhaust systems. If a primary fan fails, the intelligent controller can automatically ramp up the remaining fans or trigger the exhaust system to prevent a catastrophic over-temperature trip.
- Condition-Based Maintenance:
By monitoring the electrical and mechanical signatures of the cooling fans, operators can transition from scheduled maintenance to condition-based maintenance. Abnormal current draws, vibration anomalies, or unexpected temperature gradients can be detected early. This predictive approach minimizes unplanned downtime and extends the overall lifecycle of both the cooling system and the transformer itself.
Conclusion
The evolution of dry-type transformer cooling has transcended the simple addition of a fan. Today’s thermal management requires a holistic engineering approach that combines aerodynamic optimization, active refrigeration, and intelligent control. As the electrical grid continues to decentralize and demand higher power densities, the ability to precisely manage heat through advanced cooling architectures will remain a critical differentiator in transformer design and reliability.
