Features

The main operating component of the fan - the motor - is made of cast iron base and is an outdoor fully enclosed waterproof motor. The rated service life is designed to be over 80,000 hours, and the anti-corrosion grade is IP55. An aluminum alloy casing can also be adopted, which not only reduces the overall weight of the machine but also has excellent corrosion resistance, does not rust, can increase the motor's lifespan and reduce motor noise.The outer cylinder of the fan is formed by one-time rolling, with a gentle curve, elegant appearance and strong practicality.The fan blades are formed by die-pressing high-strength aluminum alloy plates, featuring large air volume, low noise, high efficiency and long service life.The entire fan undergoes hot-dip galvanizing treatment to enhance its anti-corrosion ability, improve the appearance quality and service life of the fan.

Application:Specifically designed for the heat dissipation and cooling systems of large and medium-sized transformers.

Get a Quote

Introduction

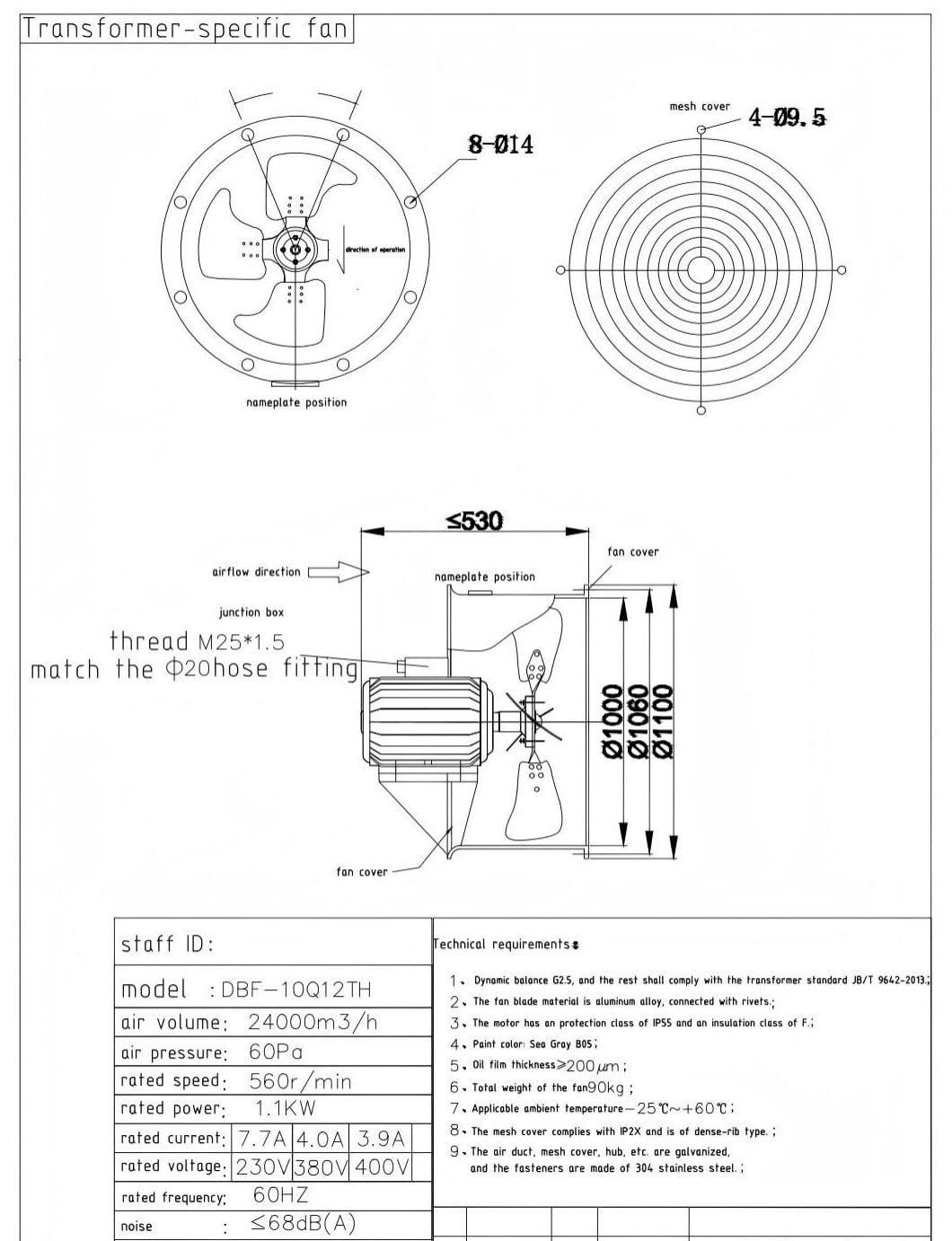

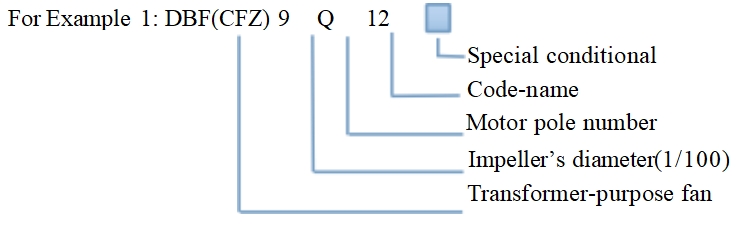

III. Model Explanation

Model Specification


Special conditional code-name:

W —— Common outdoor-type(omitted)
TH —— Humid tropical type
TA —— Arid tropical type

Flowing direction:

Q —— Forward(Air flow from motor to impeller)
H —— Backward(Air flow from impeller to motor)


Parameters of Q series fans

Type Diameter of the impeller(mm) Speed(r/min) Volume(m3/h) Total pressure(Pa) Power(kw) Noise dB(A) Zlectric(A)
DBF(CFZ)-4 Q 4 400 1400 5000 120 0.37 66 1.1
6 900 4200 100 0.25 62 1
8 700 4000 70 0.18 57 1
10 540 3500 50 0.18 55 1
DBF(CFZ)-5 Q 4 500 1400 8000 150 0.55 70 1.5
6 900 7000 100 0.37 63 1.2
8 700 6250 80 0.25 58 1.1
10 580 5000 50 0.18 54 1
12 480 4000 28 0.18 52 1
DBF(CFZ)-6 Q 6 600 960 10000 100 0.55 68 1.7
8 720 9000 80 0.55 64 1.9
10 580 7500 65 0.37 57 1.5
12 480 7500 50 0.25 55 1.5
DBF(CFZ)-6.3 Q 6 630 900 12000 118 0.55 67 1.7
8 720 10000 90 0.55 64 1.9
700 8000 50 0.37 64 1.5
10 580 8500 45 0.37 57 1.5
DBF(CFZ)-7 Q 6 700 910 16000 110 0.75 70 2.2
8 720 13500 100 0.55 64 1.9
10 580 11000 60 0.37 58 1.5
12 460 10000 55 0.25 56 1.3
DBF(CFZ)-7.1 Q 8 710 720 13500 120 0.55 64 1.9
12 460 10000 60 0.37 57 1.6
DBF(CFZ)-7.3 Q 6 730 960 14000 120 0.75 70(69) 2.2
12 460 11000 65 0.37 57 1.6
DBF(CFZ)-8 Q 6 800 960 17000 120 1.1 72 3
8A 720 15000 85 0.55 65 1.9
8B 720 17000 100 0.75 66 2.4
10 580 16000 75 0.55 60 2.1
12 460 13500 65 0.37 56 1.6
DBF(CFZ)-9 Q 6 900 960 16000 150 1.1 72 3
8A 720 17000 100 0.75 66 2.4
8B 720 17000 120 1.1 65 3
10 580 17000 100 0.75 63 2.9
10 580 17000 120 1.1 65 3.8
12 480 17000 70 0.55 59 2.3
14 360 15000 60 0.37 57 1.9
16 320 13500 46 0.25 54 1.4
16 320 13000 37 0.25 52 1.4
20 270 9500 27 0.25 47 1.7
DBF(CFZ)-10 Q 8A 1000 720 18000 150 1.1 69 3
8B 720 20000 165 1.5 69 4.2
10 580 20000 135 1.1 67 3.5
12 480 22000 75 0.75 63 3.2
12 480 22000 95 1.1 64 4.1
14 360 18000 75 0.55 59 2.3
16 320 16000 50 0.37 57 2.1
20 270 13000 36 0.37 49 2.3
DBF(CFZ)-11 Q 12 1100 480 27000 90 1.1 65 4.1
14 360 21000 80 0.75 60 2.9
16 320 21000 75 0.55 58 2.5
20 270 17000 55 0.37 52 2.3
DBF(CFZ)-12 Q 14 1200 480 28000 80 1.1 63 4.3
16 350 26000 70 0.75 59 3.8
20 270 25000 35 0.37 52 2.3

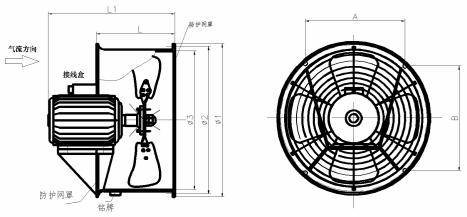

IV. Ventilaing equipment overall figure and installation dimension


Type Size Φ 1 Φ2 Φ3 Φ4 L L1 A B
DBF(CFZ)-4Q Φ474 Φ444 Φ412 4-Φ11 270 370 314 314
DBF(CFZ)-5Q Φ600 Φ565 Φ512 4-Φ14.5 260 400 400 400
DBF(CFZ)-6Q Φ700 Φ650 Φ615 4-Φ14.5 305 450 460 460
DBF(CFZ)-6.3Q Φ730 Φ690 Φ642 4-Φ14.5 300 450 488 488
DBF(CFZ)-7Q Φ790 Φ750 Φ712 4-Φ15 300 470 530 530
DBF(CFZ)-7.1Q Φ810 Φ760 Φ722 4-Φ15 300 470 538 538
DBF(CFZ)-7.3Q Φ846 Φ806 Φ745 4-Φ15 320 470 570 570
DBF(CFZ)-8Q Φ900 Φ862 Φ815 4-Φ15 320 480 610 610
DBF(CFZ)-8.5Q Φ950 Φ899 Φ860 4-Φ15 320 480 636 636
DBF(CFZ)-9Q Φ 1000 Φ962 Φ917 4-Φ19 320 500 680 680
DBF(CFZ)-9Q Φ 1030 Φ980 Φ925 4-Φ19 320 500 760 620
DBF(CFZ)-10Q Φ 1110 Φ1060 Φ1010 4-Φ19 350 530 750 750
DBF(CFZ)-11Q Φ 1210 Φ1160 Φ1110 4-Φ19 400 610 820 820
DBF(CFZ)-12Q Φ 1310 Φ1250 Φ1210 4-Φ21 440 650 884 884

Parameters of H series fans

Type Diameter ofthe impeller(mm) Speed(r/min) Volum(m3/h) Total pressure(Pa) Power(kw) Noise dB(A) Zlectric(A)
DBF-4 H 4 400 1400 5000 120 0.37 66 1.1
6 900 4200 100 0.25 62 0.9
8 700 4000 80 0.18 57 0.8
10 540 3500 50 0.18 55 1
DBF-5 H 6 500 900 7000 100 0.37 63 1.1
8 700 6500 85 0.25 58 1.1
10 580 5000 50 0.18 54 1
DBF-6 H 6 600 960 12000 150 0.75 70 2.2
8 700 7800 100 0.55 63 1.9
10 580 7500 65 0.37 57 1.5
12 480 7500 50 0.25 55 1.5
DBF-6.3 H 6 630 900 12000 118 0.55 67 1.7
8 700 10000 115 0.55 63 1.9
10 580 8500 80 0.37 57 1.5
DBF-7 H 8 700 700 13500 100 0.55 64 1.9
10 580 11000 80 0.37 58 1.5
12 480 10000 60 0.25 56 1.3
DBF-7.1 H 8 710 700 13500 120 0.55 64 1.9
DBF-7.3 H 6 730 960 14000 120 0.75 2.2
12 480 11000 65 0.37 57 1.6
DBF-8 H 6 800 960 17000 120 1.1 72 3
8 700 15000 100 0.55 65 1.9
17000 85 0.75 2.4
10 580 16000 75 0.55 60 2.1
12 480 13500 65 0.37 56 1.6
DBF-9 H 8 900 720 17000 100 0.75 65 2.4
10 580 17000 100 0.75 63 2.9
12 480 17000 70 0.55 60 2.3
14 360 15000 60 0.37 57 1.9
16 320 13000 35 0.25 53 1.4
20 270 9500 27 0.25 47 1.7
DBF-10 H 8 1000 720 20000 185 1.5 69 4.2
10 580 20000 135 1.1 67 3.7
12 480 20000 95 0.75 62 3.2
14 360 18000 80 0.55 58 2.1
16 320 17000 50 0.37 57 2.2
20 270 13000 36 0.37 49 2.3
DBF-11 H 14 1100 360 21000 80 0.75 60 2.9
16 320 21000 75 0.55 58 2.5
20 270 17000 55 0.37 52 2.3
DBF-12 H 14 1200 480 28000 80 1.1 63 4.3
16 320 26000 70 0.75 59 2.9
20 270 25000 35 0.37 52 2.3

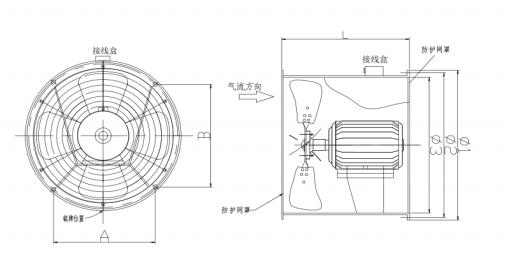

V. Ventilaing equipment overall figure and installation dimension


Type Size Φ 1 Φ2 Φ3 Φ4 L1 A B
DBF-4 H Φ474 Φ444 Φ412 4-Φ11 370 314 314
DBF-5 H Φ600 Φ565 Φ512 4-Φ14.5 400 400 400
DBF-6.3 H Φ730 Φ690 Φ642 4-Φ14.5 450 488 488
DBF-7 H Φ790 Φ750 Φ712 4-Φ15 450 530 530
DBF-7.1 H Φ810 Φ760 Φ722 4-Φ15 450 538 538
DBF-7.3 H Φ846 Φ806 Φ745 4-Φ15 470 570 570
DBF-8 H Φ900 Φ862 Φ815 4-Φ15 470 610 610
DBF-9H Φ 1000 Φ962 Φ917 4-Φ19 470 680 680
DBF-10 H Φ 1110 Φ 1060 Φ1010 4-Φ19 500 750 750
DBF-11 H Φ 1210 Φ 1160 Φ1110 4-Φ19 560 820 820
DBF-12 H Φ 1310 Φ1250 Φ1210 4-Φ21 600 884 884

Note: 1、The size of L depends on the type of electric motors chosen.
2、The corresponding sizes are subject to changes according to customers requirement.

VI. Cooler fan technical parameters（380V/400V 50HZ）

Type Diameter of the impeller(mm) Speed(r/min) Volume(m3/h) Total pressure(Pa) Power(kw) Noise dB(A) Zlectric(A)
DBF(CFZ)-4Q 4 400 1400 4600 120 0.25 65 0.8
6 900 4500 100 0.25 63 0.9
DBF(CFZ)-5Q 4 500 1400 8000 150 0.55 69 1.5
6 900 7500 130 0.37 65 1.2
DBF(CFZ)-6Q 6 600 960 12000 165 1.1 70 3.1
8 720 7800 118 0.55 63 1.9
DBF(CFZ)-6.3Q 8 630 720 9000 120 0.55 63 1.9
DBF(CFZ)-7Q 8 700 720 13500 110 0.55 65 1.9
DBF(CFZ)-8Q 6 800 900 16000 170 1.1 70 3.1
8 720 16000 130 1.1 66 3
DBF(CFZ)-8.5Q 6 850 960 16000 200 1.5 72 4
8 720 16000 150 1.1 67 3
DBF(CFZ)-9 Q 6 900 960 22000 210 2.2 73 5.6
6 960 16000 215 1.5 72 3.8
8 720 16000 150 1.1 67 3
8 720 17000 170 1.5 68 4.2
10 580 17000 120 1.1 65 3.2
DBF(CFZ)-10Q 8 1000 720 28000 220 3 73 7.7
8 720 24000 210 2.2 71 5.8
8 720 20000 185 1.5 69 4.2
10 580 20000 160 1.5 69 4.9
10 580 19000 140 1.5 67 4.9

Remark:our company collect high quality leaf types with various specific speeds manufactured for years.We can meet the demand of users through change of speed,linearity dimension etc.
