Key Features:
• High Airflow and Low Energy Consumption – The fan delivers large air volume with optimized aerodynamic performance, ensuring uniform air pressure, excellent cooling efficiency, low power consumption, and stable operation.
• Compact Structure and Easy Installation – Designed with a rational structure and elegant appearance, the fan is easy to install and maintain, while offering smooth and quiet operation with minimal vibration.
• Multiple Model Options – Available in top-blowing, side-blowing, and extended dual-wheel configurations, allowing flexible installation according to transformer design requirements.
• High-Quality Aluminum Alloy Construction – The fan casing and blades are made from premium aluminum alloy, providing lightweight durability, corrosion resistance, and a long service life.
• Wide Compatibility – Suitable for all dry-type transformers with capacities ranging from 30 KVA to 25,000 KVA, meeting diverse cooling demands across different transformer sizes.

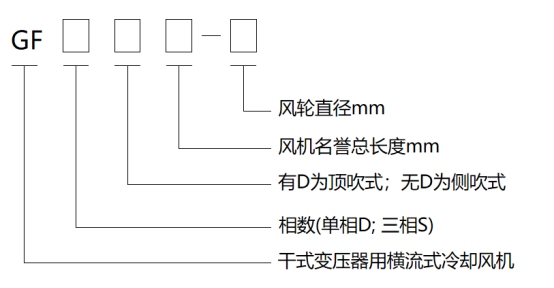

Selection Guide
Example: GFD1400-110
Indicates a single-phase 220V, 1400mm overall length, 110mm diameter impeller, cross-flow cooling fan for side-blown dry-type transformers.

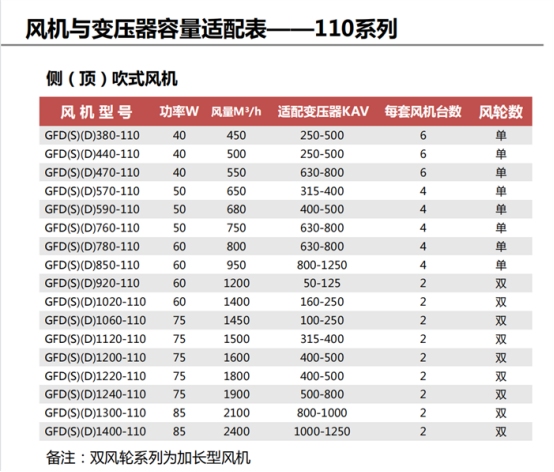

Fan and Transformer Capacity Matching Table
Fan Dimensions and Mounting Specifications
Fan Dimensions and Mounting Specifications

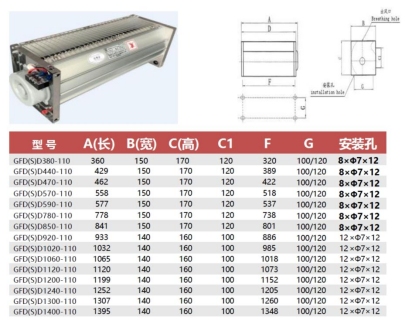

110 Top-Blow Fan Dimensions and Installation Sizes

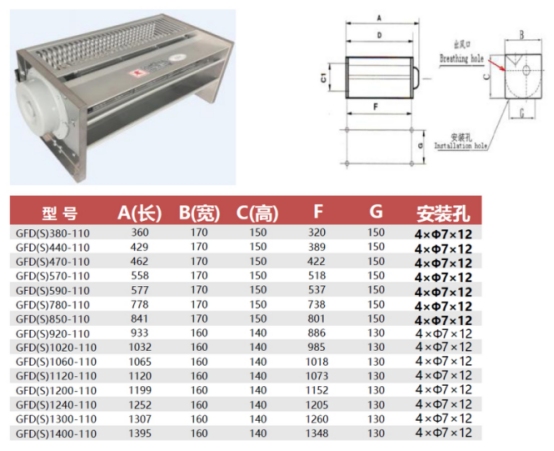

110 Side-Blow Fan Dimensions and Installation Sizes
